Product Overview
The Horizontal Structure Indirect Heat Exchange Gas-Fired Hot Air Furnace is designed for industrial applications that require a more horizontal fluid flow direction. It is ideal for use in air preheaters and other systems where stable structures and easy maintenance are essential.
This furnace is particularly suitable for locations with available floor space, where gravity assistance for fluid flow is not necessary. Its horizontal design offers enhanced efficiency and easy access for maintenance, making it a reliable choice for industries requiring durable and low-maintenance heating solutions. Whether for large-scale industrial operations or specific heating tasks, this furnace provides consistent performance and adaptability to various operational needs.
Product Features
Dual Heat Transfer Modes
The furnace utilizes both radiation and convection heat transfer modes, ensuring efficient heat exchange and optimizing energy use during operation.

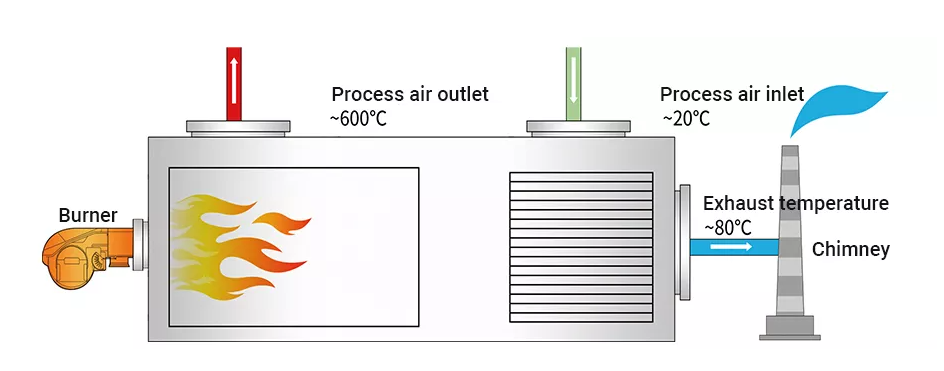

Indirect Heat Exchange
The furnace uses indirect heat exchange, preventing direct contact between the heating medium and the fluid, ensuring safe and controlled heat transfer.
Low Exhaust Gas Temperature
The exhaust gas temperature is reduced to below 80°C, significantly improving heat efficiency and minimizing energy losses, allowing for better resource utilization.
Complete Heating System
The furnace includes a fully integrated heating system, which simplifies installation and ensures that all components work seamlessly together for consistent performance.
Product Advantages
Higher Temperature Resistance
The furnace's integrated system structure is capable of withstanding high temperatures, up to 600°C, ensuring reliable performance in demanding applications requiring heat resistance.
Less Energy Consumption
By replacing numerous coal-fired furnaces, the gas-fired hot air furnace significantly reduces energy consumption, offering an eco-friendly alternative that lowers operational costs.
Clean Hot Air Delivery
The indirect contact of gas ensures that hot air remains free from contamination, making it suitable for industries that require clean, uncontaminated heated air for their processes.
Even Heat Exchange
The furnace ensures uniform fluid distribution within the heat exchanger, providing consistent and even heat exchange. This makes it ideal for applications that demand precise temperature control.
Flexible Piping Layout
With the horizontal design, the system offers flexibility in piping layout and connection, making it adaptable to complex process flows in different industrial environments.
Stable Structure
The horizontal design provides a lower center of gravity, enhancing structural stability and minimizing the risk of tipping, ensuring reliable performance in industrial settings.
Product Parameters
Product Type | Horizontal Structure |
Hot air flow range | 3000-1000000Nm³/h |
Hot air temperature range | 50℃~600℃ |
Heat load range (per unit) | 50000~10000000 Kcal/h |
Operating pressure range | ±30 KPa |
Heat exchange component material | Stainless steel 310S, 304, etc. |
Media | Clean air, process gases in the system, steam, etc. |
Fuel | Natural gas, various clean gases, light oil, etc. |
Combustion engine | Integrated unit, industrial burner nozzle both available |
Scenarios
Air Preheaters
It can be used as an air preheater in industrial systems, improving energy efficiency by raising the temperature of air before it enters combustion systems, reducing fuel consumption.
Drying Products
The furnace delivers hot, clean air for drying materials, making it suitable for industries where precise temperature control is needed, such as drying chemicals, food products, or pharmaceuticals.
Food Industry
In the food industry, the furnace provides clean hot air for drying or processing products while maintaining hygienic standards, preventing contamination and ensuring food safety.
Pharmaceutical Industry
The furnace is essential for pharmaceutical manufacturing, providing consistent and clean heat for drying sensitive materials without contaminating them, meeting strict industry standards.
Synthetic Resin and Fine Chemicals
It serves the synthetic resin and fine chemical industries by providing controlled, clean heat to ensure the quality of delicate chemical processes and product integrity.
