Introduction
Heat exchangers are essential in food production, regulating temperature during processes like pasteurization and cooling. These systems ensure food safety, preserve quality, and extend shelf life. In this article, we will delve into the different types of heat exchangers, with a special focus on the Plate-and-Frame heat exchanger and its advantages in the food and beverage industry.
The Role of Heat Exchangers in Food Safety and Quality
Pasteurization and Sterilization
Heat exchangers, particularly Plate-and-Frame heat exchangers, are essential for pasteurizing dairy products, juices, and eggs. They ensure that harmful microorganisms are eliminated without compromising the product’s taste and nutritional value. The efficiency of Plate-and-Frame heat exchangers in achieving the necessary temperatures for pasteurization allows for quick, energy-efficient processing, which is crucial in ensuring food safety while maintaining product quality.
Temperature Control and Product Consistency
In food production, precise temperature regulation is essential for maintaining consistency in flavor, texture, and nutritional content. Plate-and-Frame heat exchangers are particularly effective in providing uniform temperature distribution during processes like fermentation, chilling, and freezing. The following table highlights key parameters and performance characteristics of Plate-and-Frame heat exchangers in temperature control for various food products.
| Application | Temperature Range (°C) | Flow Rate (L/min) | Heat Transfer Coefficient (W/m²·K) | Precision Control (°C) | Efficiency (%) | Key Considerations |
| Fermentation | 20–30 | 100–500 | 300–500 | ±0.5°C | 90–95 | Ensures even temperature for optimal fermentation, particularly in dairy products like yogurt and cheese |
| Chilling | 0–5 | 200–1000 | 400–600 | ±0.5°C | 85–90 | Critical for preserving freshness, texture, and nutritional value in beverages and dairy products |
| Freezing | -18 to -22 | 150–800 | 500–700 | ±1°C | 80–90 | Prevents ice crystal formation, ensuring product quality in frozen foods like ice cream and ready meals |
| Juice Cooling | 5–10 | 50–400 | 350–500 | ±0.5°C | 85–90 | Maintains flavor, texture, and nutritional content in fruit juices without over-cooling or degrading taste |
| UHT Processing | 135–150 | 50–300 | 500–800 | ±0.5°C | 95–98 | Prevents microbial growth while maintaining the product's sensory qualities during high-temperature treatments |
Tip: To optimize the efficiency of Plate-and-Frame heat exchangers, ensure that the flow rates and temperature precision are aligned with the specific product requirements for consistent quality and flavor.
Extended Shelf Life
Heat exchangers play a significant role in extending the shelf life of food products. Through pasteurization and sterilization processes, they remove harmful bacteria and pathogens, helping to keep the food safe for longer periods. Additionally, by maintaining the correct temperature during processing, heat exchangers help retain the nutritional quality of food, preventing spoilage and preserving flavor. Plate-and-Frame heat exchangers are particularly effective in these processes due to their efficient heat transfer and easy maintenance, ensuring minimal downtime and long-term use.
Key Types of Heat Exchangers Used in the Food and Beverage Industry
Plate-and-Frame Heat Exchangers
Plate-and-Frame heat exchangers are known for their compact and efficient design. They use corrugated stainless steel plates to create turbulence, enhancing the heat transfer process. This makes them ideal for applications involving low- to medium-viscosity liquids like milk, juice, and liquid eggs. Their modular design allows for easy disassembly for cleaning or capacity adjustment, making them a popular choice in the food and beverage industry. Compared to shell-and-tube exchangers, Plate-and-Frame heat exchangers require less space and offer higher heat transfer rates, which is crucial for maintaining energy efficiency.
Shell-and-Tube Heat Exchangers
Shell-and-tube heat exchangers are known for their durability and ability to withstand high pressures, making them suitable for applications involving viscous products or those with particulates. They are commonly used in processes such as soup and sauce production, where the product’s viscosity or presence of large particulates demands robust and efficient heat transfer. These exchangers are effective in high-temperature or high-pressure environments but are generally bulkier and require more space compared to Plate-and-Frame designs.
Scraped Surface Heat Exchangers
Scraped surface heat exchangers (SSHEs) are designed for applications where the food product is highly viscous or contains particles, such as in chocolate, nut butter, or ice cream production. The rotating or reciprocating scrapers prevent fouling by continuously cleaning the heat transfer surface, ensuring efficient thermal conductivity. This feature is crucial for maintaining the quality of sensitive products, preventing the overheating of the product, and ensuring that it flows consistently through the exchanger.
Design Considerations for Heat Exchangers in Food Processing
Material Selection and Hygiene
In food processing, selecting the right materials is crucial for ensuring hygiene and long-term performance of the equipment. Different heat exchanger materials have various impacts on food contact safety, corrosion resistance, thermal conductivity, and ease of cleaning. The table below outlines the characteristics of common materials and their applications in food processing.
| Material | Characteristics | Application Area | Corrosion Resistance | Hygienic Design | Common Uses |
| Stainless Steel (316L) | High corrosion resistance, good thermal conductivity, heat resistant | Food contact, heat exchangers | Excellent | Yes | Dairy products, fruit juices, alcoholic beverages pasteurization, cooling, etc. |
| Titanium | Extremely high corrosion resistance, lightweight | High-corrosion environments | Excellent | Yes | Suitable for acidic or low pH products like citrus juice, wine, etc. |
| Stainless Steel (304) | Good corrosion resistance, easy to process | External parts of food equipment | Good | Yes | Non-food-contact heat exchangers, external support structures, etc. |
| Aluminum | Lightweight, cost-effective, but less corrosion-resistant | Non-food contact parts of equipment | Poor | No | Used for non-food-contact areas, or in environments where corrosion is not a concern. |
Tip: When selecting materials for heat exchangers, ensure they are suitable for the product's characteristics (such as acidity or temperature) to optimize durability and hygiene.
Thermal Performance and Efficiency
Maximizing heat transfer efficiency is essential for energy conservation and process optimization in food production. Plate-and-Frame heat exchangers are designed to provide high thermal efficiency by increasing the surface area of the heat transfer plates. This results in better heat exchange at lower energy costs. The compact design of these exchangers ensures that a high heat transfer coefficient is maintained, which is particularly important in food applications requiring close temperature control, such as pasteurization and sterilization.
Ease of Cleaning and Maintenance
One of the key benefits of Plate-and-Frame heat exchangers is their ease of cleaning and maintenance. Their modular design allows for easy disassembly, making it possible to clean each plate individually without the need for dismantling the entire system. This feature is particularly valuable in the food industry, where hygienic conditions must be maintained at all times. Additionally, the flexibility to add or remove plates allows for adjustments in capacity to meet varying production demands, ensuring that the system can be optimized for both performance and efficiency.
Critical Applications of Heat Exchangers in Food Production
Milk and Juice Pasteurization
In the pasteurization process of milk and juices, Plate-and-Frame heat exchangers provide quick and even heating, helping eliminate harmful microorganisms while preserving the product's nutritional content and flavor. The table below outlines key parameters and efficiency standards when using Plate-and-Frame heat exchangers for pasteurization.
| Product Type | Heating Temperature (°C) | Heating Time (Seconds) | Heat Exchanger Type | Temperature Control Precision | Energy Efficiency | Advantages |
| Milk | 161.6 | 15 | Plate-and-Frame | ±0.5°C | High | Fast, even heating, preserves flavor and nutrition, meets hygiene standards |
| Juice | 85–95 | 30–60 | Plate-and-Frame | ±1°C | High | High efficiency, reduces energy consumption, suitable for large-scale production |
| Liquid Eggs | 63 | 30–60 | Plate-and-Frame | ±0.5°C | High | Precise temperature control, effectively eliminates pathogens, maintains protein activity |
Tip: Ensure the heat exchanger's thermal performance aligns with product requirements, guaranteeing the product reaches the required temperature and time standards for optimal efficiency and food safety.
Brewing and Beverage Production
In the brewing industry, Plate-and-Frame heat exchangers are used to maintain optimal temperatures during fermentation, cooling, and brewing processes. Their compact size allows for quick installation and easy adaptation to different production capacities, while their efficiency helps in energy recovery, reducing operational costs. Additionally, they support temperature-sensitive processes, such as beer and wine fermentation, where precise control is critical for maintaining product consistency.
Specialty Food Applications
Plate-and-Frame heat exchangers are also used in the production of specialty foods such as chocolate, ice cream, and sauces. In these applications, maintaining the correct temperature is crucial to preserve the product’s texture and consistency. For example, in chocolate production, the heat exchanger ensures that the tempering process is controlled to achieve the perfect crystallization and avoid burning or discoloration. For high-viscosity products, scraped surface exchangers are often used to ensure that the product flows smoothly without fouling the heat transfer surface.
Energy Efficiency and Sustainability in Heat Exchange Processes

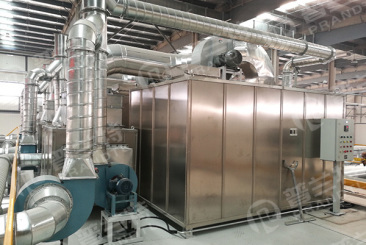

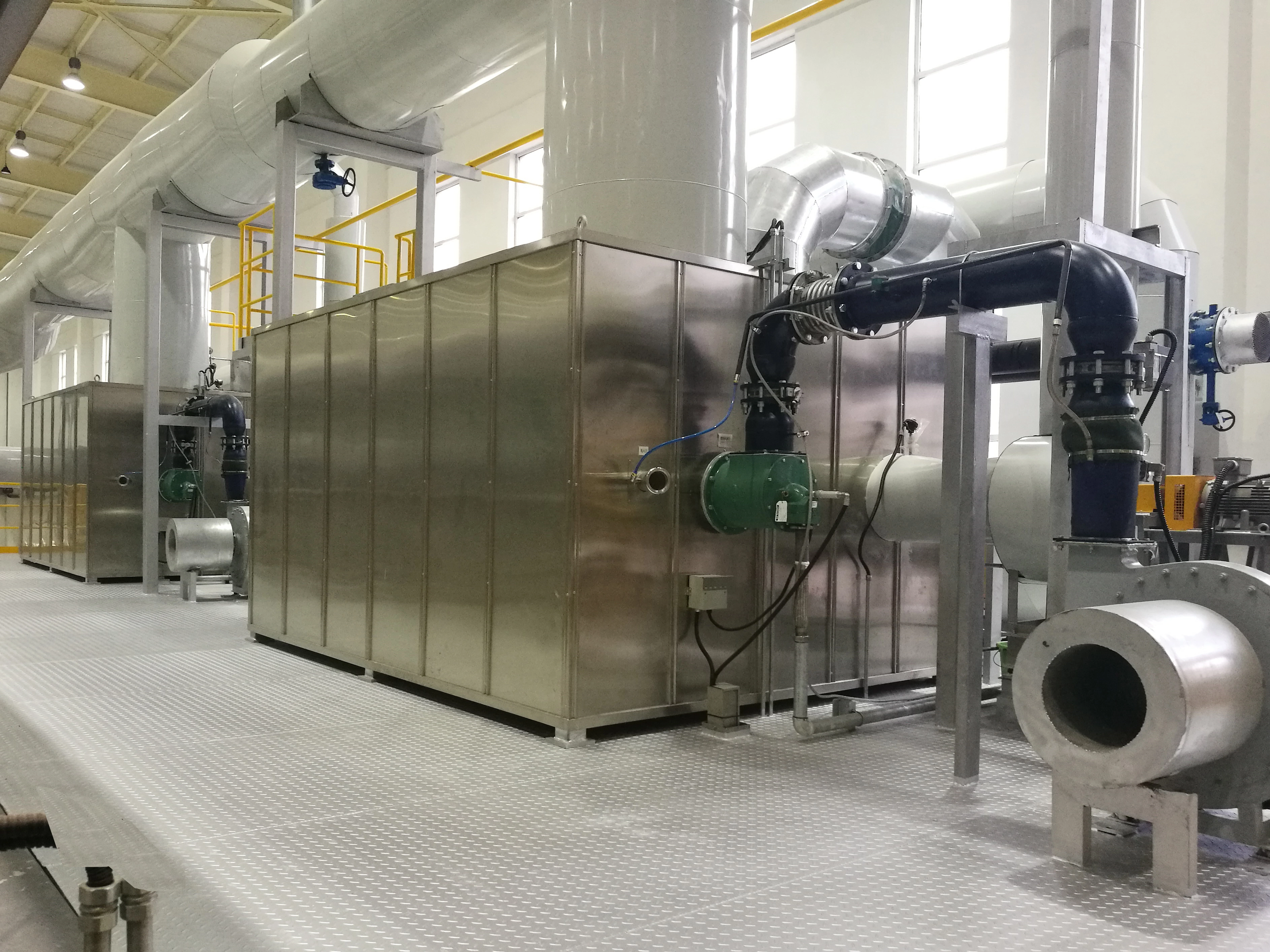

Heat Recovery Systems
Heat exchangers play a significant role in improving energy efficiency in food processing plants. Through heat recovery systems, energy from hot streams (such as pasteurized milk or heated water) is used to pre-heat colder streams (like incoming milk), reducing the need for additional energy to heat the fluid. Plate-and-Frame heat exchangers, with their high heat transfer efficiency, are particularly suited for energy recovery, helping to lower utility consumption and reduce operational costs.
Reducing Environmental Impact
The food and beverage industry is increasingly focusing on sustainability, and heat exchangers are an integral part of this shift. By improving energy efficiency and reducing waste heat, heat exchangers help reduce water and energy consumption. Additionally, advancements in heat exchanger technology are making it easier to recover energy, contributing to more sustainable and environmentally friendly production processes. The use of Plate-and-Frame heat exchangers, in particular, supports these efforts by offering compact designs that require less energy to operate.
Regulatory Compliance and Industry Standards
FDA and USDA Guidelines
Compliance with regulatory standards such as FDA and USDA guidelines is essential in the food industry, where product safety is paramount. Plate-and-Frame heat exchangers meet these requirements by ensuring that all materials used in their construction, such as stainless steel, are safe for food contact. These heat exchangers are also designed to support Clean-in-Place (CIP) systems, which are critical for maintaining hygienic conditions in food processing environments.
Certification and Material Standards
Certification from regulatory bodies ensures that heat exchangers are suitable for food applications and meet stringent standards for safety and performance. The use of certified stainless steel and other materials in Plate-and-Frame heat exchangers guarantees that these systems are reliable, durable, and capable of meeting the demanding requirements of food production. Certifications also reassure customers that products processed with these systems are safe and compliant with health regulations.
Future Trends in Heat Exchanger Technology for Food and Beverage
Innovations in Plate-and-Frame Heat Exchangers
The future of heat exchangers in the food and beverage industry is likely to see continued advancements in materials and design. For example, emerging materials with higher thermal conductivity and resistance to extreme temperatures may further enhance the efficiency and lifespan of Plate-and-Frame heat exchangers. Additionally, more compact and flexible designs will allow these systems to meet the growing demand for energy-efficient and space-saving solutions in food processing plants.
Automation and IoT Integration
Automation and the integration of IoT (Internet of Things) technology in heat exchangers are changing the way food processing plants operate. Smart monitoring systems allow for real-time tracking of temperature, pressure, and flow, ensuring that processes are running efficiently. Predictive maintenance, powered by IoT devices, helps identify potential issues before they cause downtime, ensuring that Plate-and-Frame heat exchangers continue to operate at peak performance.
Conclusion
Plate-and-Frame heat exchangers play a vital role in the food and beverage industry by offering efficient, compact, and hygienic temperature control solutions. These systems ensure food safety, enhance product quality, and improve energy efficiency. Additionally, their customizable design and ease of maintenance make them ideal for evolving food processing needs. Nanjing Prandtl Heat Exchange Equipment Co.,Ltd. offers these high-performance systems, providing reliable solutions that meet strict industry regulations while promoting sustainability and energy conservation in food production.
FAQ
Q: What is a Plate-and-Frame heat exchanger and how does it work?
A: A Plate-and-Frame heat exchanger uses corrugated stainless steel plates to transfer heat efficiently between fluids. The design creates turbulence that enhances heat transfer, making it ideal for applications like milk pasteurization and juice cooling.
Q: Why is stainless steel commonly used in heat exchangers for food production?
A: Stainless steel heat exchangers are highly resistant to corrosion, easy to clean, and meet hygiene standards, making them perfect for food applications. They ensure safe and efficient heat transfer while maintaining food quality.
Q: How do Plate-and-Frame heat exchangers improve energy efficiency in food processing?
A: Plate-and-Frame heat exchangers offer high thermal efficiency due to their compact design, reducing energy consumption during processes like pasteurization, cooling, and sterilization in food production.
Q: Can a Plate-and-Frame heat exchanger be used for high-viscosity products?
A: Plate-and-Frame heat exchangers are ideal for low- to medium-viscosity liquids. For high-viscosity products, alternatives like scraped surface heat exchangers may be more effective, but Plate-and-Frame heat exchangers are still commonly used in some high-viscosity applications.
Q: What are the benefits of using a stainless steel heat exchanger in the food industry?
A: Stainless steel heat exchangers are durable, resistant to corrosion, and offer long-term performance. Their hygienic design ensures food safety, and their efficient heat transfer reduces energy costs in processing.
