U-Type Vs W-Type Gas To Gas Platular Heat Exchanger: Which Flow Path Fits Your Plant Layout?

Industrial flue gas heat recovery is not only a thermal calculation problem; it is also a plant layout problem. The flow path of a gas to gas platular heat exchanger affects duct routing, equipment footprint, fan resistance, maintenance access, ash accumulation, and installation cost. A U-type gas to gas platular heat exchanger is often selected when the gas path needs to reverse direction within a compact space, while a W-Type design is commonly considered when a longer internal flow path and higher heat transfer area utilization are required.

Key Takeaway

● A U-type gas to gas platular heat exchanger suits compact layouts.

● U-Type design is practical for gas direction reversal.

● W-Type design offers a longer internal gas path.

● Plant layout strongly affects flow path selection.

● Pressure drop must be checked before final design.

● Fouling risk can change the preferred structure.

● Custom flow path design is often needed for industrial flue gas.



Understanding U-Type and W-Type Flow Paths

What Defines a U-Type Flow Path

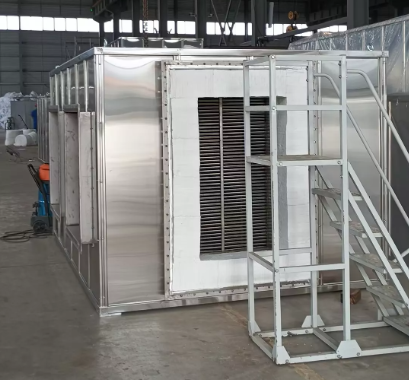

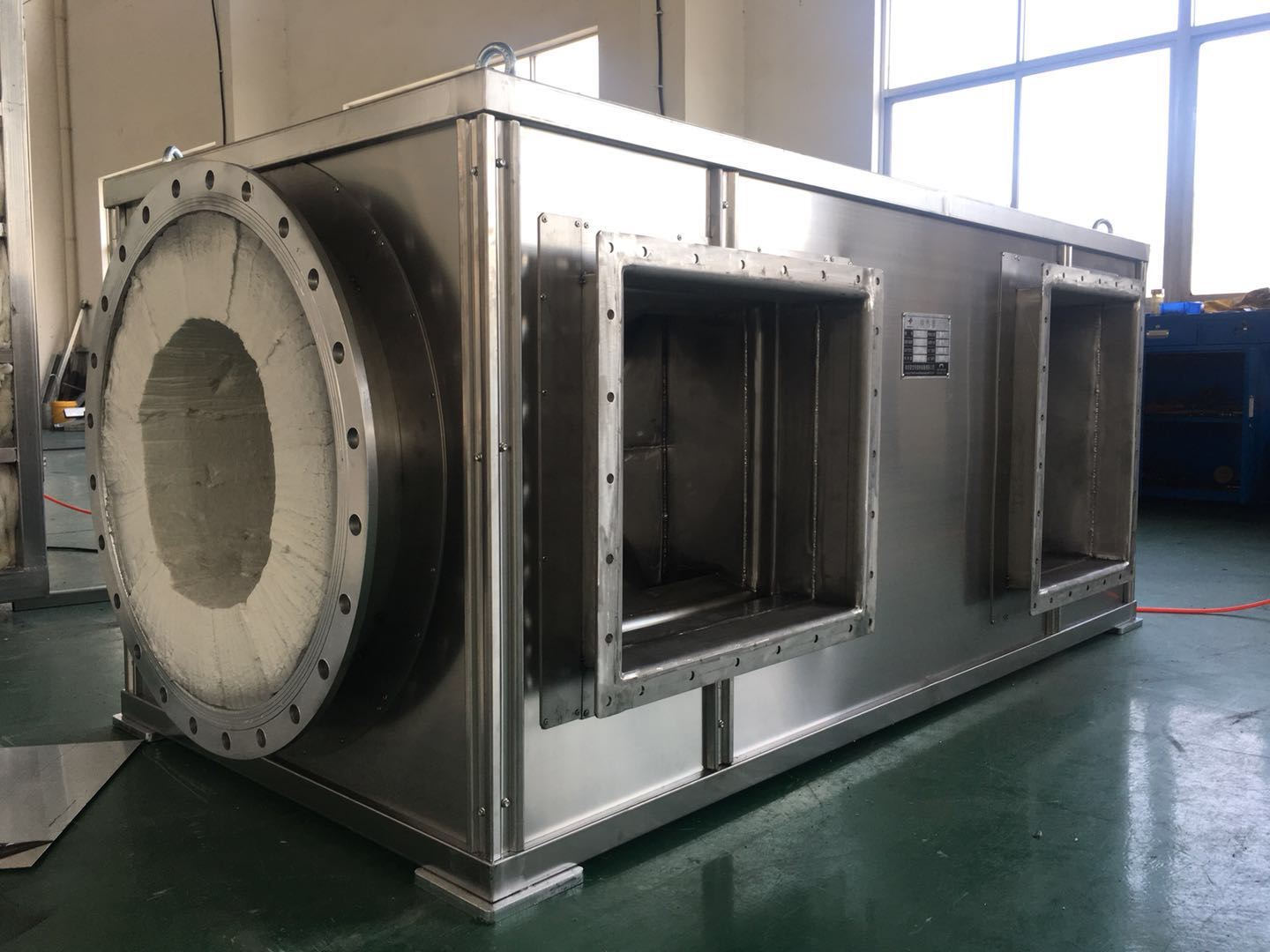

A U-type gas to gas platular heat exchanger uses an internal gas route where the stream enters the exchanger, turns inside the body, and exits in a reversed or same-side direction. This structure is useful when external ductwork cannot be extended in a straight line due to walls, platforms, process equipment, or existing flue gas lines. In retrofit projects, a U-type gas to gas platular heat exchanger can reduce the need for additional elbows, long transition ducts, and major layout changes.

What Defines a W-Type Flow Path

A W-Type gas to gas platular heat exchanger uses multiple directional changes inside the exchanger, creating a longer gas route than a simple straight-through or U-Type arrangement. The W-shaped path can increase gas residence time and improve heat transfer area utilization when the allowable pressure drop is sufficient. However, compared with a U-type gas to gas platular heat exchanger, the W-Type design usually requires more careful evaluation of flow resistance and ash deposition zones.

Why Flow Path Selection Affects the Whole System

The flow path determines how the exchanger connects to ducts, how gas velocity is distributed, and how much fan power is required. A U-type gas to gas platular heat exchanger may fit better when inlet and outlet ducts need to remain close together or on the same side of the equipment. W-Type design may be preferred when the plant has enough installation space and the project requires a longer heat transfer path.



Plant Layout Factors That Influence Selection

Same-Side Inlet and Outlet Requirements

A U-type gas to gas platular heat exchanger is often suitable when the hot gas inlet and outlet need to be arranged on the same side or within a restricted connection zone. This requirement appears frequently in existing plants where the original duct route cannot be changed without interrupting production or rebuilding steel structures. By reversing the gas route internally, a U-type gas to gas platular heat exchanger can keep the external duct system simpler and more compact.

Available Footprint and Equipment Orientation

The available footprint determines whether the exchanger can be placed horizontally, vertically, near a wall, above a platform, or beside an existing duct. A U-type gas to gas platular heat exchanger is generally more flexible when space is limited because the flow path can be arranged around the site restriction. W-Type structures may require more equipment length or a more open installation zone to accommodate the longer gas path and connection geometry.

Duct Routing and Installation Complexity

Duct routing affects pressure loss, fabrication cost, supporting steelwork, and field installation time. A U-type gas to gas platular heat exchanger can reduce external duct turns when the process already requires a change in gas direction. W-Type design can be effective in new installations where duct routing is planned together with the exchanger layout from the beginning.



Engineering Performance Comparison

Pressure Drop and Fan Power

Pressure drop is one of the most important differences between U-Type and W-Type designs. A U-type gas to gas platular heat exchanger often has a shorter internal route than a W-Type design, but actual resistance still depends on channel spacing, gas velocity, plate geometry, and gas density. W-Type flow paths can create higher pressure drop when the gas route is longer, so fan capacity and operating resistance must be verified before selection.

Heat Transfer Efficiency

A W-Type design can provide stronger heat transfer performance when the longer path increases contact time and improves surface utilization. A U-type gas to gas platular heat exchanger can still achieve stable recovery efficiency when the heat duty, plate area, and gas distribution are correctly designed. Efficiency should not be judged only by flow shape, because actual performance also depends on LMTD, fouling factor, gas properties, and allowed outlet temperatures.

Fouling and Ash Deposition

Industrial flue gas often carries dust, soot, ash, sticky particles, or condensable components. A U-type gas to gas platular heat exchanger must be designed with suitable channel spacing and gas velocity to reduce deposits near turning zones. W-Type paths require similar attention because multiple directional changes may create local low-velocity areas where particles can settle.



When to Choose Each Flow Path

When U-Type Is the Better Fit

A U-type gas to gas platular heat exchanger is often the better fit when the plant layout requires gas direction reversal within a compact equipment zone. It is also practical when the inlet and outlet ducts must be close together because of existing ductwork, building columns, walkways, or process equipment. For retrofit flue gas heat recovery, a U-type gas to gas platular heat exchanger can simplify installation while still meeting thermal duty and pressure drop requirements.

When W-Type Is the Better Fit

W-Type design is suitable when the system needs a longer gas path and the plant has enough space for the larger or more complex flow arrangement. It can be considered when higher heat recovery is required and the fan system can tolerate the additional resistance. W-Type selection should include detailed checking of velocity distribution, fouling behavior, and cleaning access.

When a Customized Flow Path Is Required

Many industrial projects cannot be solved by selecting only a standard U-Type or W-Type layout. A customized U-type gas to gas platular heat exchanger may be required when the gas flow rate, temperature range, duct direction, or corrosion risk creates special constraints. Custom design can adjust plate spacing, pass arrangement, nozzle position, material grade, inspection port location, and overall equipment size.

Design Data Required Before Final Selection

Gas Flow Rate and Temperature Profile

The flow rate of hot and cold gas determines heat capacity, gas velocity, channel size, and equipment volume. For a U-type gas to gas platular heat exchanger, engineers usually need normal, minimum, and maximum flow data rather than only one design point. Inlet temperature, target outlet temperature, and possible operation fluctuation should be confirmed before heat transfer area is finalized.

Gas Composition and Corrosion Risk

Flue gas composition affects material selection, dew point corrosion risk, fouling tendency, and service life. A U-type gas to gas platular heat exchanger handling sulfur oxides, chlorides, fluorides, moisture, or acidic vapor must be designed with proper corrosion margin and safe wall temperature. If the outlet temperature is set too low, acid condensate may form on the heat transfer surface and damage the exchanger.

Pressure Drop Limit and Duct Interface

The allowable pressure drop should be defined before the exchanger structure is finalized. A U-type gas to gas platular heat exchanger may be selected to reduce external duct complexity, but the internal resistance must still match the available fan capacity. Duct dimensions, flange type, inlet direction, outlet direction, support position, and maintenance space should be reviewed together with the thermal design.



Practical Layout and Maintenance Considerations

Maintenance Access Around the Exchanger

Maintenance access should be planned before finalizing the equipment orientation. A U-type gas to gas platular heat exchanger can place important duct connections in a compact area, but inspection doors and cleaning points still need enough working clearance. If access is blocked by platforms, walls, or other equipment, even a good thermal design can become difficult to operate over the long term.

Cleaning Strategy for Dusty Flue Gas

Dusty flue gas applications require practical cleaning access and suitable internal gas velocity. A U-type gas to gas platular heat exchanger should avoid extremely low-velocity turning zones where ash may accumulate and reduce the effective heat transfer area. Cleaning methods, inspection intervals, and removable duct sections should be considered during layout design rather than after installation.

Thermal Expansion and Structural Stability

High-temperature operation creates thermal expansion in plates, welds, casing, and duct connections. A U-type gas to gas platular heat exchanger needs proper expansion allowance because the internal turn and external duct connection may experience repeated heating and cooling cycles. Structural stability depends on material strength, welding quality, support design, and the ability to absorb temperature-related movement.

Conclusion

U-Type and W-Type flow paths are not competing choices with one universal winner; they are engineering options for different plant layouts and operating conditions. A U-type gas to gas platular heat exchanger is generally suitable for compact installation, gas direction reversal, same-side duct connection, and retrofit projects, while W-Type design is often considered when a longer gas route and higher heat transfer area utilization are required. For projects involving high-temperature flue gas, limited space, corrosive components, dusty exhaust, or strict pressure drop limits, Nanjing Prandtl Heat Exchange Equipment Co.,Ltd can evaluate a customized U-type gas to gas platular heat exchanger or W-Type design according to real process data and site conditions.



FAQ

What is a U-type gas to gas platular heat exchanger?

A U-type gas to gas platular heat exchanger is a welded plate heat exchanger in which the gas stream changes direction inside the exchanger body. The U-shaped internal route allows inlet and outlet ducts to be arranged more flexibly in compact plant layouts. It is commonly used for industrial flue gas heat recovery where the two gas streams must remain separated.

When should a U-type design be selected?

A U-type gas to gas platular heat exchanger should be considered when the site requires gas direction reversal, same-side duct connection, or a compact installation footprint. It is especially practical in retrofit projects where existing ductwork cannot be easily rearranged. Final selection should still check heat duty, pressure drop, fouling risk, and maintenance access.

Is W-Type more efficient than U-Type?

W-Type design may provide higher heat transfer potential when its longer gas path increases surface utilization. A U-type gas to gas platular heat exchanger can still deliver strong performance when it is properly sized for flow rate, LMTD, and heat transfer area. The better option depends on plant layout, fan capacity, gas cleanliness, and thermal recovery target.
