How To Size A Gas To Gas Platular Heat Exchanger for Industrial Flue Gas Heat Recovery

How To Size A Gas To Gas Platular Heat Exchanger for Industrial Flue Gas Heat Recovery

Industrial flue gas often carries a large amount of recoverable heat, especially in furnaces, boilers, kilns, drying systems, chemical processes, and oil and gas operations. A properly sized gas to gas platular heat exchanger can transfer this waste heat from hot exhaust gas to a colder gas stream without mixing the two media. Correct sizing is not only about calculating heat transfer area; it also requires checking flue gas composition, flow rate, dew point corrosion, fouling tendency, pressure drop, material strength, thermal expansion, and installation limitations.

Key Takeaways

 A gas to gas platular heat exchanger should be sized from actual flow rate, temperature, pressure drop, gas composition, and heat recovery target.

 Heat duty, LMTD, overall heat transfer coefficient, and required heat transfer area are the core sizing values.

 Flue gas fouling, ash deposition, dew point corrosion, and high-temperature stress must be included in the design stage.

 Counterflow and optimized multi-pass structures can improve heat recovery efficiency in compact equipment.

 A customized gas to gas platular heat exchanger is often required for high-temperature, corrosive, dusty, or large-volume flue gas conditions.



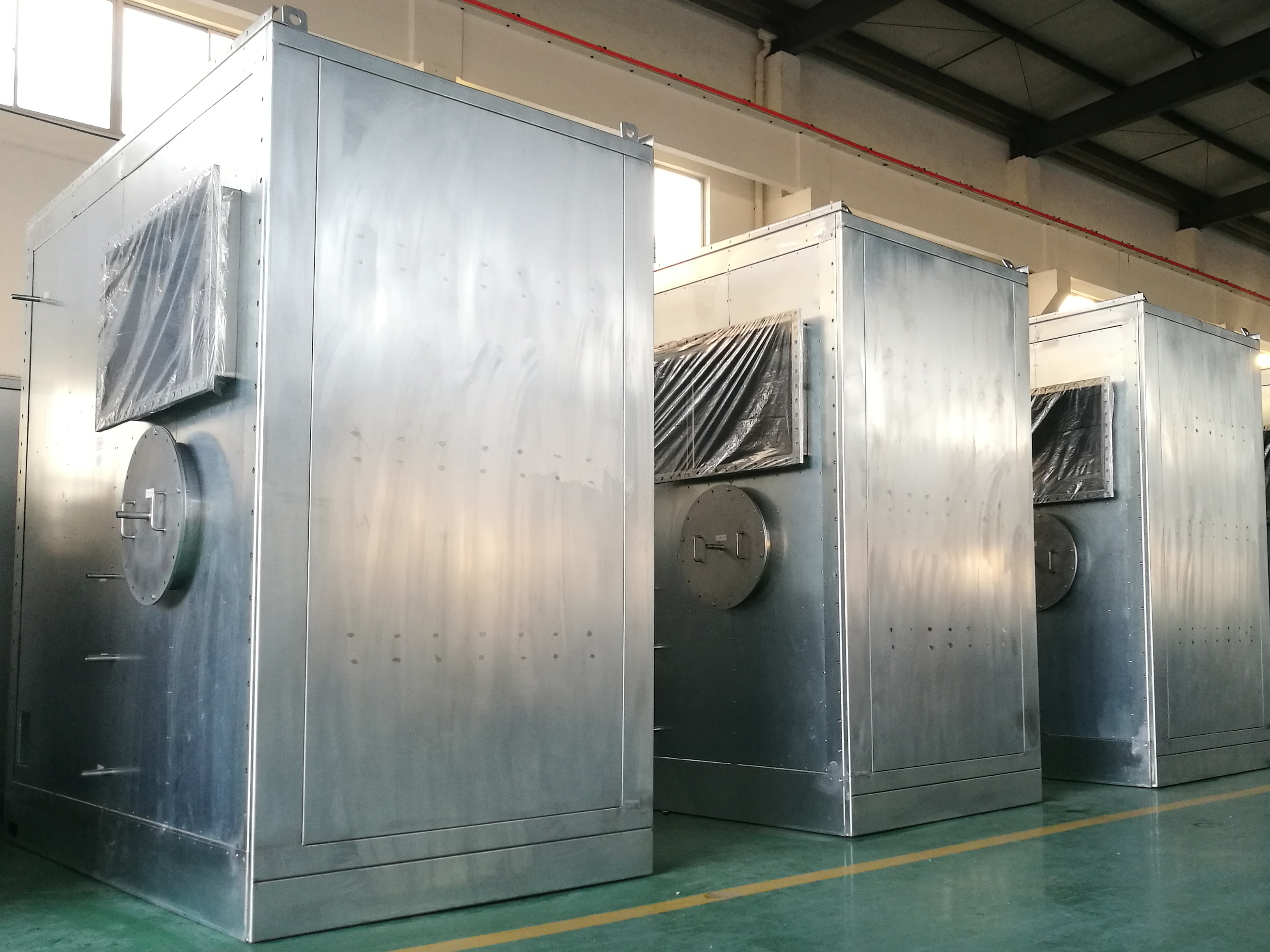

What Is a Gas to Gas Platular Heat Exchanger?

Basic Working Principle

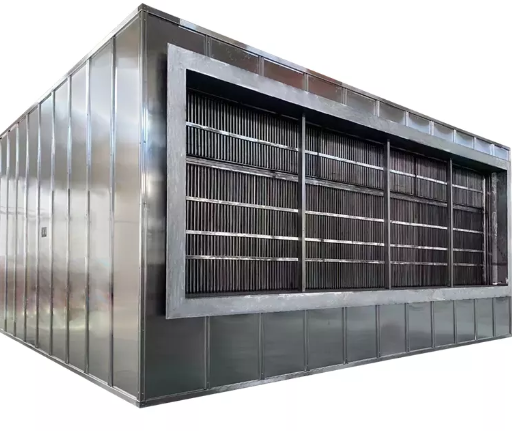

A gas to gas platular heat exchanger is built with welded metal plates that form narrow rectangular gas channels. Hot gas and cold gas flow through separate channels, and heat passes through the plate wall from the hotter stream to the colder stream. The two gas streams remain isolated, which is important when exhaust gas contains dust, odor, corrosive components, or combustion by-products.

Difference from Conventional Gas Heat Exchangers

A gas to gas platular heat exchanger usually offers a more compact structure than many traditional shell-and-tube gas heat exchangers. Its plate-type flow channels provide a high surface area within a limited equipment volume, which improves heat recovery density. The welded construction also supports applications where leakage control and structural integrity are critical.

Why Platular Design Fits Flue Gas Heat Recovery

A gas to gas platular heat exchanger is suitable for flue gas heat recovery because industrial exhaust often has high flow volume and moderate to high temperature. The plate arrangement can be customized into different flow paths to match site ductwork, gas velocity, and pressure drop limits. This flexibility allows the exchanger to be adapted for boiler exhaust, furnace exhaust, drying exhaust, chemical off-gas, and oil or gas process streams.


Key Data Required Before Sizing

Flue Gas Flow Rate

The first sizing input for a gas to gas platular heat exchanger is the actual or normalized flue gas flow rate. Flow rate determines the available heat capacity and strongly affects channel size, gas velocity, pressure drop, and total heat transfer area. For industrial systems, flow should be confirmed under normal, minimum, and maximum operating conditions rather than only at one design point.

Inlet and Outlet Temperatures

Temperature data defines the heat recovery target of the gas to gas platular heat exchanger. The hot gas inlet and outlet temperatures show how much heat can be removed, while the cold gas inlet and outlet temperatures show how much useful preheating can be achieved. The target outlet temperature must be realistic, because excessive cooling may create condensation or acid dew point corrosion.

Gas Composition and Dew Point

Gas composition is essential when sizing a gas to gas platular heat exchanger for flue gas service. Sulfur oxides, nitrogen oxides, chlorides, fluorides, moisture, and acidic vapors influence corrosion risk and material selection. The dew point must be evaluated carefully because a low wall temperature can cause aggressive condensate to form on the heat transfer surface.

Allowable Pressure Drop

Pressure drop is a key design boundary for every gas to gas platular heat exchanger. A larger heat transfer surface can increase heat recovery, but narrow channels and high gas velocity may increase fan power consumption. The final design must balance heat recovery efficiency with acceptable operating resistance.

Sizing Data

Engineering Role

Hot gas flow rate

Determines available heat and channel volume

Cold gas flow rate

Defines heating capacity and outlet temperature

Gas inlet temperatures

Establishes thermal driving force

Target outlet temperatures

Defines heat recovery performance

Gas composition

Guides corrosion and material decisions

Dust or ash content

Influences fouling allowance and channel design

Pressure drop limit

Controls flow velocity and fan energy demand



Basic Sizing Steps for a Gas to Gas Platular Heat Exchanger

Step 1: Calculate Heat Duty

The heat duty of a gas to gas platular heat exchanger can be estimated with the equation Q = m × Cp × ΔT. In this equation, Q is heat load, m is mass flow rate, Cp is specific heat capacity, and ΔT is the temperature change of the gas. Since industrial gas flow is often given in Nm³/h, conversion to mass flow is normally required before final calculation.

Step 2: Determine the Temperature Difference

The effective temperature difference controls the heat transfer driving force inside a gas to gas platular heat exchanger. Engineers often use log mean temperature difference, or LMTD, because gas temperatures change continuously through the exchanger. Counterflow or optimized multi-pass flow can maintain a stronger average temperature difference than simple parallel flow.

Step 3: Estimate the Overall Heat Transfer Coefficient

The overall heat transfer coefficient of a gas to gas platular heat exchanger depends on gas velocity, plate thickness, material conductivity, surface condition, fouling allowance, and flow arrangement. In many gas-to-gas industrial cases, a practical coefficient may be in the range of 30–40 W/(m²·℃), depending on the operating environment. Dirty, dusty, or low-velocity gas usually requires a more conservative coefficient to avoid undersizing.

Step 4: Calculate Required Heat Transfer Area

The heat transfer area of a gas to gas platular heat exchanger can be estimated through A = Q / U × LMTD when units are properly arranged. A larger heat duty, lower heat transfer coefficient, or smaller temperature difference will increase the required area. Final area selection should include fouling margin, manufacturing constraints, flow distribution, and future operating variation.

Calculation Item

Typical Formula or Basis

Heat duty

Q = m × Cp × ΔT

Temperature driving force

LMTD method

Heat transfer area

A = Q / U × LMTD

Fouling allowance

Based on dust, ash, tar, or condensable content

Pressure drop

Checked through channel geometry and gas velocity

Material selection

Based on temperature, corrosion, and dew point



Design Factors for Industrial Flue Gas Applications

Fouling and Ash Deposition

A gas to gas platular heat exchanger used in flue gas service must consider ash, dust, soot, and sticky particles. Fouling creates thermal resistance on the plate surface and reduces actual heat transfer performance over time. If the channel spacing or gas velocity is unsuitable, fouling may also increase pressure drop and cause unstable operation.

Dew Point Corrosion

Dew point corrosion is one of the most serious risks for a gas to gas platular heat exchanger handling industrial exhaust. When metal wall temperature falls below the acid dew point, acidic condensate can form and attack the heat transfer surface. The outlet temperature, plate material, and flow path must be selected to keep the exchanger within a safe corrosion margin.

Thermal Expansion and High-Temperature Stress

High-temperature flue gas creates thermal expansion inside a gas to gas platular heat exchanger. If the structure is too rigid, repeated heating and cooling cycles may create fatigue, deformation, or weld stress. Elastic structural design and proper expansion allowance are important for long-term stable operation.

Leakage Prevention

A gas to gas platular heat exchanger must keep the hot and cold gas streams separated during continuous operation. Leakage may reduce heat recovery quality, contaminate the clean gas side, or create safety problems in special process conditions. Full welding, pressure testing, and proper structural design are therefore essential for reliable sealing performance.


Flow Arrangement and Structural Selection

Counterflow Arrangement

A counterflow gas to gas platular heat exchanger sends the hot gas and cold gas in opposite directions. This arrangement usually provides a higher average temperature difference and better heat recovery efficiency. It is often preferred when the process requires maximum energy recovery within a compact footprint.

Crossflow Arrangement

A crossflow gas to gas platular heat exchanger allows the two gas streams to move across each other at an angle. This arrangement can simplify duct connection and fit sites with limited installation space. It may be selected when layout flexibility is more important than achieving the highest possible temperature approach.

Multi-Pass Platular Structures

A multi-pass gas to gas platular heat exchanger can use U-type, W-type, S-type, I-type, L-type, or other customized channel layouts. Multi-pass design can improve gas distribution, increase effective residence time, and match existing ductwork directions. The best structure depends on heat duty, pressure drop, equipment size, maintenance access, and field installation conditions.

Flow Structure

Typical Use Condition

Design Consideration

Counterflow

High heat recovery demand

Higher thermal efficiency

Crossflow

Compact duct arrangement

Flexible connection layout

U-type

Direction change required

Suitable for constrained sites

W-type

Longer gas path needed

Higher area utilization

S-type

Special installation layout

Balanced flow and compactness

I-type

Straight-through flow

Lower structural complexity



Common Mistakes When Sizing a Gas to Gas Platular Heat Exchanger

Ignoring Gas Composition

Sizing a gas to gas platular heat exchanger only from flow rate and temperature is risky. Gas composition affects corrosion, fouling, dew point, material compatibility, and service life. Without composition data, the exchanger may achieve the calculated heat duty but fail prematurely in real operation.

Oversizing Without Pressure Drop Control

An oversized gas to gas platular heat exchanger is not always a better solution. Excessive surface area can increase equipment cost, installation difficulty, and structural weight. Low gas velocity may also encourage dust settlement, which gradually reduces thermal efficiency.

Setting the Outlet Temperature Too Low

Reducing the outlet flue gas temperature too aggressively can damage a gas to gas platular heat exchanger. Low outlet temperature may lower metal wall temperature below the dew point and create acidic condensation. A safe design often keeps the exhaust temperature above the corrosion threshold instead of chasing maximum theoretical recovery.

Using Standard Equipment for Complex Flue Gas

Complex flue gas conditions often require a customized gas to gas platular heat exchanger. High temperature, corrosive gas, high dust loading, and large volume flow cannot always be handled by a standard design. Custom sizing allows the heat transfer area, channel spacing, material, structure, and pressure drop to be matched to the real process.



When to Use a Customized Gas to Gas Platular Heat Exchanger

High-Temperature Flue Gas

A customized gas to gas platular heat exchanger is recommended when flue gas temperature is very high. High-temperature service requires proper material strength, thermal expansion design, insulation, and weld quality. The operating temperature range must be evaluated together with gas composition because corrosion risk can increase at elevated temperatures.

Large Gas Flow Volume

Large-volume flue gas applications often need a customized gas to gas platular heat exchanger rather than a small standard unit. Large flow requires careful channel distribution to avoid uneven velocity, local overheating, and high pressure drop. Modular or enlarged structures may be used when the flue gas flow reaches industrial-scale volumes.

Corrosive or Dust-Laden Gas

A corrosive or dusty process requires a gas to gas platular heat exchanger with suitable material and flow channel design. Dust-laden gas needs adequate channel spacing, controlled velocity, and maintenance consideration. Corrosive gas requires dew point evaluation and material selection based on actual gas chemistry.



Practical Sizing Checklist Before Quotation

Process Parameters

Before selecting a gas to gas platular heat exchanger, complete process parameters should be prepared. These include hot gas flow, cold gas flow, inlet temperatures, target outlet temperatures, operating pressure, and pressure drop limits. Missing process data often leads to repeated revisions and inaccurate equipment sizing.

Gas Quality Parameters

Gas quality data is just as important as thermal data for a gas to gas platular heat exchanger. Moisture, sulfur, chlorine, dust concentration, ash properties, and corrosive compounds influence both material choice and structural layout. If condensable or sticky substances exist, the design should include additional fouling and cleaning considerations.

Site and Installation Conditions

A gas to gas platular heat exchanger must fit the actual installation site, not only the thermal calculation. Duct direction, flange shape, maintenance space, equipment support, lifting conditions, and insulation requirements all affect the final design. Round or square interfaces may be selected according to the existing flue gas system.

Checklist Category

Required Information

Thermal data

Flow rate, inlet temperature, target outlet temperature

Gas composition

Moisture, acidic gas, dust, ash, corrosive components

Mechanical limits

Pressure, pressure drop, allowable leakage level

Site conditions

Duct direction, flange type, available space

Operation pattern

Continuous, intermittent, startup and shutdown cycles

Maintenance demand

Cleaning access, inspection space, fouling control



Conclusion

Sizing a gas to gas platular heat exchanger for industrial flue gas heat recovery requires more than a simple heat transfer area calculation. Flow rate, heat duty, LMTD, heat transfer coefficient, fouling factor, pressure drop, gas composition, dew point corrosion, material selection, and structural layout must be considered together. For demanding projects involving high temperature, large gas volume, corrosive components, or dust-laden exhaust, Nanjing Prandtl Heat Exchange Equipment Co.,Ltd can provide customized gas to gas platular heat exchanger solutions based on actual operating conditions and heat recovery targets.



FAQ

What information is needed to size a gas to gas platular heat exchanger?

A gas to gas platular heat exchanger requires hot and cold gas flow rates, inlet temperatures, target outlet temperatures, operating pressure, and pressure drop limits. Gas composition, moisture content, dust concentration, and dew point information are also necessary for safe design. Installation data such as duct direction, flange size, and available space should be confirmed before final selection.

How is the heat transfer area calculated?

The heat transfer area of a gas to gas platular heat exchanger is commonly estimated from heat duty, overall heat transfer coefficient, and LMTD. The simplified equation is A = Q / U × LMTD when all units are consistent. Final sizing should include fouling allowance, pressure drop verification, material limits, and flow distribution correction.

Can a gas to gas platular heat exchanger handle high-temperature flue gas?

A properly designed gas to gas platular heat exchanger can handle high-temperature flue gas when suitable materials and structures are used. High-temperature service requires attention to thermal expansion, weld strength, insulation, and long-term metal stability. The final allowable temperature depends on gas composition, corrosion potential, and selected heat exchange material.
