Industrial flue gas heat recovery depends on more than heat transfer area, gas temperature, and material selection; it also depends on how the exchanger fits into the actual duct system. An I-type gas to gas plate heat exchanger is usually selected for straight-duct projects where hot and cold gas streams can enter and leave through a more linear arrangement. S-Type structure is often considered when a retrofit project requires direction changes, limited installation space, or modified inlet and outlet positions without rebuilding the entire duct network.
● An I-type gas to gas plate heat exchanger suits straight-duct layouts.
● I-Type structure is practical for linear gas flow and simple duct alignment.
● S-Type structure is suitable for retrofit projects with direction changes.
● Pressure drop, gas velocity, and duct routing must be reviewed together.
● Fouling risk can change the preferred flow path and plate spacing.
● Installation space affects nozzle orientation and maintenance access.
● Custom structure design is often required for industrial flue gas recovery.

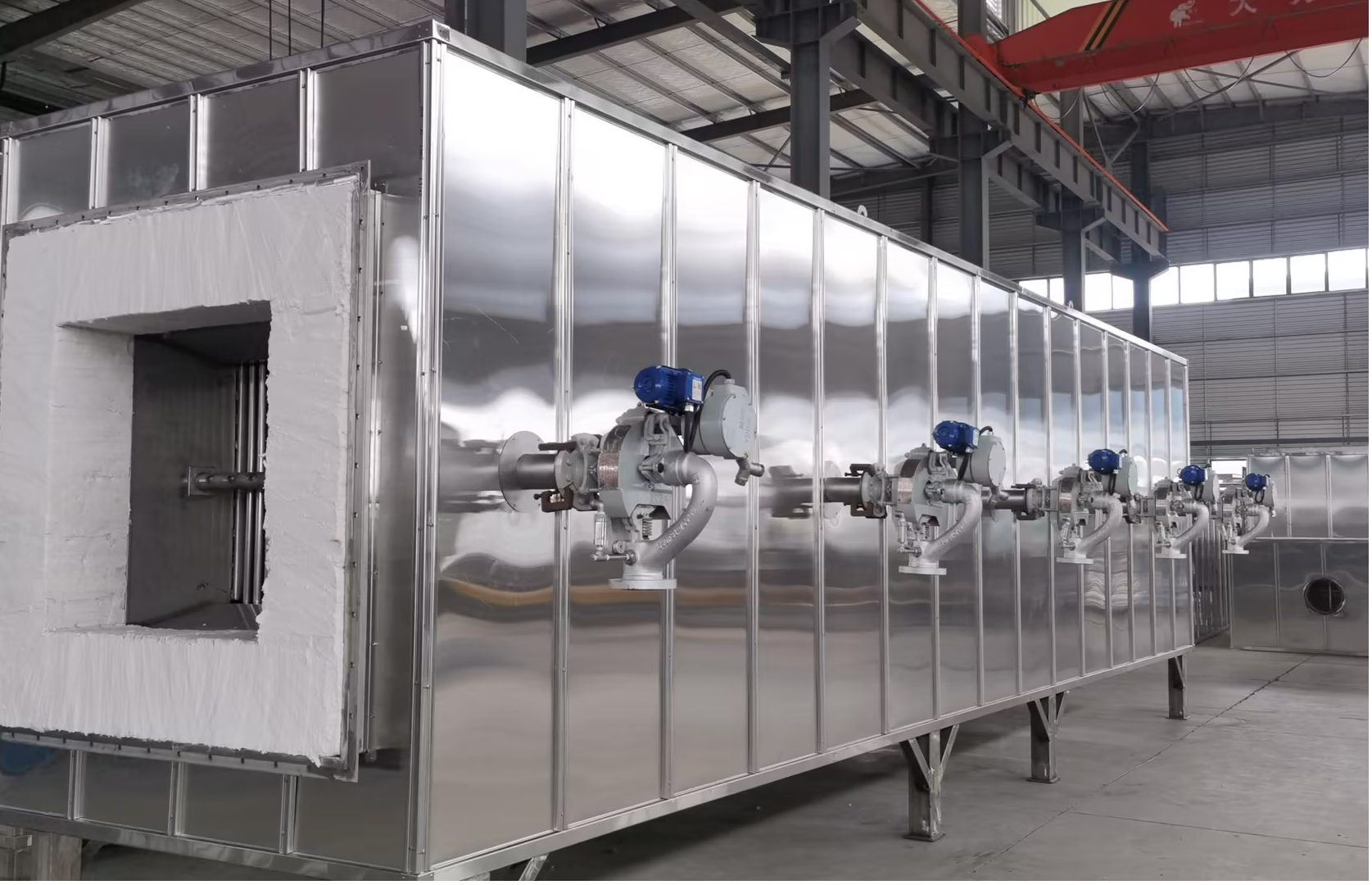

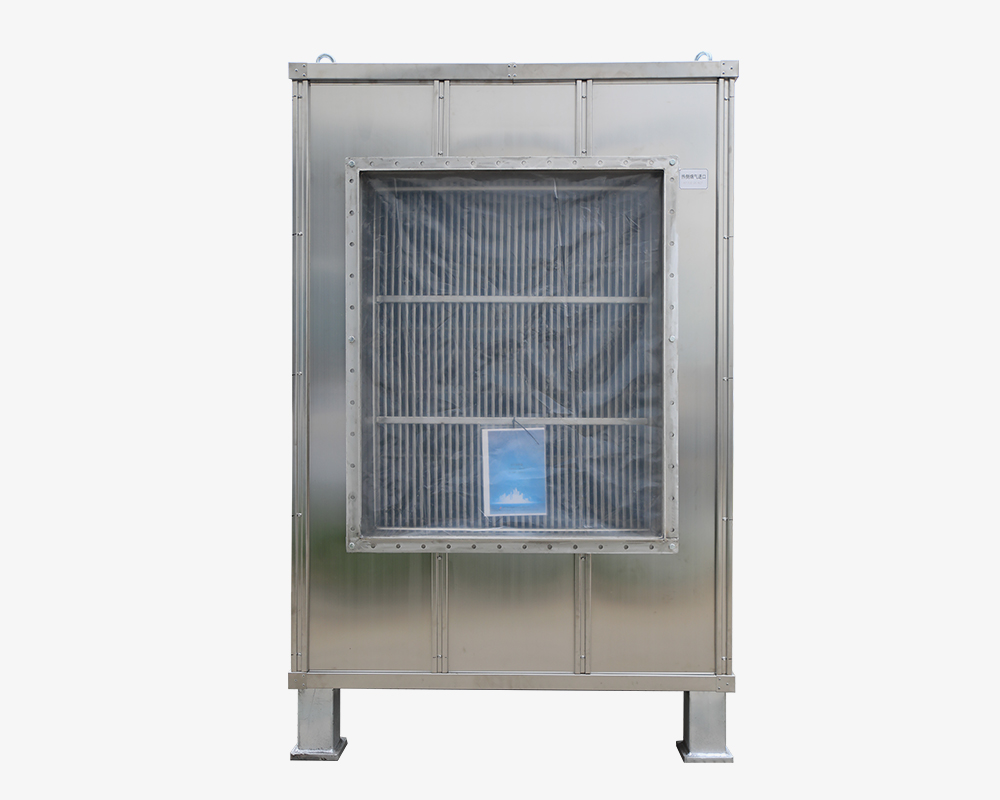

An I-type gas to gas plate heat exchanger uses a relatively straight gas route, allowing the gas stream to pass through the exchanger body without major internal direction changes. This structure is suitable when the inlet duct and outlet duct are already aligned or can be arranged with limited transition ductwork. In many new industrial systems, an I-type gas to gas plate heat exchanger simplifies equipment placement because the duct route can remain direct and predictable.

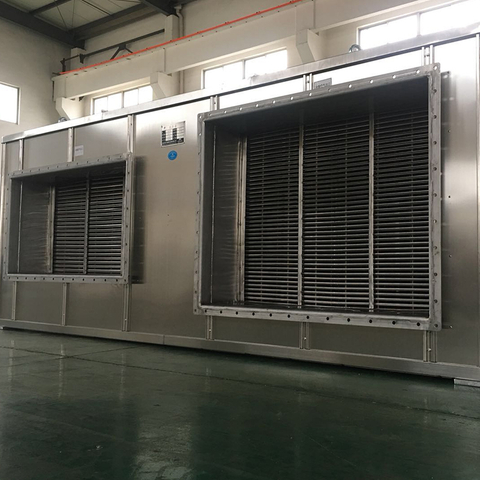

An S-Type gas to gas plate heat exchanger uses a directional path that allows the gas stream to change direction inside or around the exchanger structure. This arrangement is useful in retrofit projects where existing ducts, steel platforms, walls, or nearby equipment restrict straight-line installation. Compared with an I-type gas to gas plate heat exchanger, S-Type structure usually requires more attention to velocity distribution, turning resistance, and ash deposition zones.
The choice between S-Type and an I-type gas to gas plate heat exchanger affects more than the exchanger body because the surrounding ducts, supports, fans, access platforms, and cleaning points all interact with the selected structure. A straight-through exchanger may reduce duct complexity, while a direction-changing structure may reduce field modification work in constrained plants. The best option is determined by thermal duty, pressure drop allowance, duct orientation, maintenance access, and installation cost.
Structure Item |
I-Type Design |
S-Type Design |
Gas path |
Straight-through or nearly linear |
Direction-changing path |
Typical layout |
Straight duct system |
Retrofit or restricted duct system |
Duct connection |
Easier linear alignment |
More flexible inlet and outlet positions |
Pressure drop trend |
Often easier to control |
Depends on turning path and velocity |
Maintenance focus |
Access along straight flow sections |
Access near turning and transition zones |
Common project type |
New installation or planned duct route |
Existing plant upgrade or space-limited site |
An I-type gas to gas plate heat exchanger fits straight-duct projects because the equipment can be installed along the natural direction of gas flow. This reduces the need for additional elbows, offset ducts, and complex transition sections between process equipment and the heat exchanger. When the site layout allows direct duct connection, an I-type gas to gas plate heat exchanger can provide a clean and efficient arrangement for flue gas heat recovery.
An I-type gas to gas plate heat exchanger is often easier to evaluate for pressure drop because the flow route is more direct than a structure with multiple turning sections. Actual resistance still depends on channel spacing, gas velocity, plate geometry, gas density, and dust loading. For straight-duct projects, the main advantage of an I-type gas to gas plate heat exchanger is that local resistance from external duct turns can often be reduced.
An I-type gas to gas plate heat exchanger can simplify installation when the inlet and outlet flanges match the planned duct elevation and direction. Straight alignment reduces field adjustment work, shortens installation time, and makes support design more straightforward. In projects with limited shutdown windows, an I-type gas to gas plate heat exchanger can reduce uncertainty because the duct route is easier to measure and fabricate before installation.
Retrofit projects often involve existing ducts, old platforms, fixed equipment foundations, and restricted maintenance corridors that cannot be freely changed. In such cases, an I-type gas to gas plate heat exchanger may not always match the original duct direction, even if it performs well thermally. S-Type structure becomes practical when the gas path must adapt to site limitations while still maintaining heat recovery performance.
Existing plants frequently require the hot gas inlet and outlet to be arranged at different elevations, offset positions, or non-linear directions. If an I-type gas to gas plate heat exchanger forces excessive external duct modification, the total project cost may increase even though the exchanger body is simpler. S-Type design can reduce the need for large external elbows by absorbing part of the direction change through the exchanger arrangement.
S-Type structure becomes more practical when the duct system cannot be aligned with an I-type gas to gas plate heat exchanger without major rebuilding. It is also suitable when obstacles such as steel columns, walkways, furnace walls, or dust collectors limit direct straight-through installation. The selection should compare exchanger pressure drop, duct pressure loss, fabrication complexity, and available cleaning access rather than judging only the exchanger shape.
The flow rate of hot and cold gas determines heat recovery capacity, gas velocity, plate area, and exchanger size. For an I-type gas to gas plate heat exchanger, engineers should check normal, minimum, and maximum operating conditions because industrial flue gas flow may change with production load. Temperature range also affects material selection, thermal expansion, outlet temperature control, and the risk of condensation on heat transfer surfaces.
Fan capacity must be checked before selecting an I-type gas to gas plate heat exchanger or S-Type structure because pressure drop directly affects operating stability. A straight flow path may reduce avoidable duct resistance, but the exchanger channels still create resistance based on gas velocity and plate spacing. If the allowable pressure drop is strict, the design may require wider channels, larger heat transfer area, or adjusted flow distribution.
Industrial flue gas may contain dust, soot, fly ash, sticky particles, or condensable components that accumulate inside gas channels. An I-type gas to gas plate heat exchanger can provide stable flow distribution in a straight duct arrangement, but it still requires suitable channel spacing and inspection access. S-Type designs require additional attention around turning zones because local low-velocity areas may increase ash deposition.
Required Design Data |
Engineering Purpose |
Hot gas flow rate |
Defines recoverable heat and channel velocity |
Cold gas flow rate |
Determines heating capacity and outlet target |
Inlet temperature |
Affects thermal duty and material selection |
Target outlet temperature |
Controls heat transfer area and recovery level |
Gas composition |
Evaluates corrosion and dew point risk |
Dust and ash content |
Guides plate spacing and cleaning design |
Allowable pressure drop |
Limits gas velocity and flow path selection |
Duct direction |
Determines whether I-Type or S-Type is suitable |
Available footprint |
Affects exchanger orientation and support layout |
In a new installation, an I-type gas to gas plate heat exchanger is often preferred when the process layout can be planned around a straight gas route. The duct system, steel support, fan position, and inspection platform can be designed together from the beginning. This makes the I-type gas to gas plate heat exchanger especially suitable for plants where equipment spacing and gas flow direction are not constrained by old infrastructure.
In an existing plant upgrade, the available installation area may be fixed by previous equipment, foundations, pipe racks, or access roads. An I-type gas to gas plate heat exchanger can still be used if the existing ductwork supports a straight-through route, but S-Type may be more practical when the gas must change direction. The final comparison should include exchanger cost, duct modification cost, shutdown time, pressure drop, and cleaning feasibility.
High-dust flue gas requires careful control of gas velocity because both low velocity and excessive turbulence can create operational problems. An I-type gas to gas plate heat exchanger may reduce unnecessary direction changes, but ash behavior still depends on particle size, moisture, stickiness, and channel geometry. For S-Type structure, turning sections should be reviewed carefully to avoid local ash pockets that reduce effective heat transfer area.
An I-type gas to gas plate heat exchanger should not be selected only by duct alignment because inspection doors, cleaning ports, and removable duct sections also need working clearance. A compact straight-duct layout may look efficient in a drawing but become difficult to operate if platforms or walls block access. Maintenance space should be confirmed before finalizing exchanger orientation, flange direction, and support position.
High-temperature gas operation causes expansion in plates, casing, welds, duct joints, and support structures. An I-type gas to gas plate heat exchanger installed in a straight duct line needs expansion allowance so that thermal movement does not overload the exchanger nozzle or casing. Expansion joints, sliding supports, fixed points, and duct flexibility should be reviewed together with heat exchanger structure.
Flue gas composition can include sulfur oxides, chlorides, fluorides, water vapor, and acidic components that influence corrosion risk. An I-type gas to gas plate heat exchanger must maintain safe wall temperature when acid dew point corrosion is possible. Material grade, corrosion allowance, welding quality, and operating temperature control should be defined before manufacturing.
Selection Scenario |
Preferred Structure |
Main Reason |
Straight duct in a new plant |
I-Type |
Direct gas route and simple duct alignment |
Existing duct cannot be moved |
S-Type |
Flexible connection arrangement |
Strict pressure drop limit |
Case-specific |
Depends on velocity, channel spacing, and duct loss |
High-dust flue gas |
Case-specific |
Requires fouling and cleaning evaluation |
Limited maintenance space |
Case-specific |
Access points may decide final structure |
Need minimum duct modification |
S-Type or customized I-Type |
Depends on actual inlet and outlet directions |
Planned linear installation |
I-Type |
Easier support, flange, and duct coordination |
An I-type gas to gas plate heat exchanger should be prioritized when the plant has a straight duct route and enough space for direct inlet and outlet alignment. It is well suited for new installations where the exchanger, ducts, fan, and support frame can be coordinated during the design stage. The structure also supports simpler pressure drop estimation because fewer direction changes are introduced into the gas route.
S-Type should be considered when an I-type gas to gas plate heat exchanger would require excessive external duct modification or interfere with existing equipment. Retrofit projects often value compact connection geometry because production shutdown time, crane access, and field welding work must be controlled. S-Type structure can reduce layout conflict when the existing duct route cannot be fully redesigned.
Some industrial projects cannot be solved by selecting a standard S-Type or standard I-type gas to gas plate heat exchanger. Custom design may adjust plate spacing, flow pass arrangement, nozzle orientation, inspection port location, casing dimensions, material grade, and support layout. This approach is necessary when high temperature, corrosive gas, heavy dust, strict pressure drop, or unusual duct direction creates special engineering constraints.
An I-type gas to gas plate heat exchanger is generally suitable for straight-duct projects where gas flow can remain linear, duct alignment is simple, and installation planning is clear from the beginning. S-Type structure is often more practical for retrofit projects where existing ducts, platforms, building structures, or process equipment require directional flexibility. Final selection should combine heat duty, pressure drop, fouling risk, gas composition, duct interface, maintenance access, and site layout, and Nanjing Prandtl Heat Exchange Equipment Co.,Ltd can evaluate I-Type and S-Type gas to gas plate heat exchanger structures according to real process data and installation conditions.
An I-type gas to gas plate heat exchanger is a plate heat exchanger structure with a straight-through or nearly linear gas path. It is used for gas-to-gas heat recovery where two gas streams exchange heat through plates while remaining separated. This structure is commonly selected when the duct system supports direct inlet and outlet alignment.
An I-type gas to gas plate heat exchanger should be selected when the plant layout allows straight duct connection and simple equipment orientation. It is especially suitable for new installations where the duct route, support frame, and maintenance platform can be planned together. It should still be checked for heat duty, pressure drop, fouling tendency, and material suitability.
An I-type gas to gas plate heat exchanger mainly supports a linear gas path, while S-Type structure supports a direction-changing gas path. I-Type is usually more suitable for straight-duct projects, and S-Type is usually more suitable for retrofit projects with restricted duct positions. Neither structure is universally better because the correct choice depends on site layout and operating requirements.
